Deep End Oval Pool

by Greg Julian
(Tennessee)

I'm installing an 18 x 33 with the straps between the uprights and I'm going to do the L bracket and the cinder block, my question is do I need to do all the uprights or just 1 on the deep end?

Also, do I need to stay 3 feet off the bottom track all the way around the oval part or is the 1' 6" enough, I don’t really understand how the deep end should be laid out. A picture would be nice, I have no problem doing it, just want to do it right. Thanks, Greg



Hi Greg. You need to block beneath the braces that you removed the straps from. This may be one set of braces, two, three or even all of them. It just depends on how big the deep area is going to be. The center of the pool is about where most deep ends stop, but they do not have to, it's up to you.

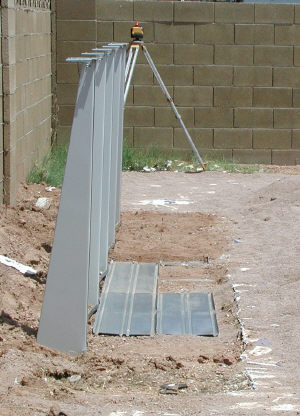

Doughboy pool pressure plates
The distance on the side is for the pressure plates, and that could vary. Pressure plates rest on the brace channels and you need about a foot of stable ground beyond the end of the channel. This could be up to three foot total ledge, it just depends on the pool.

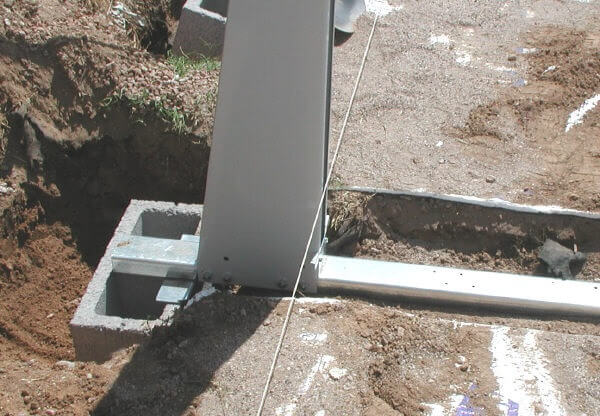

oval buttress with support block


Here are a few pages where deep ends are talked about. The first one shows a Doughboy system with one block in place. I would add the second block behind it, like the diagram above the photo. It also shows the end of the channel I was talking about.

Above Ground Pool Directions

Expandable Liner Installation

Oval Pool Deep Ends

Above Ground Oval Pool Installation

Comments for Deep End Oval Pool

Click here to add your own comments

May 26, 2010
Thanks
by: Greg Julian

Thanks, that really helped me out, that is how I'm going to do it, just wasn't sure. I want every thing to be just right. Thanks again



You are very welcome
